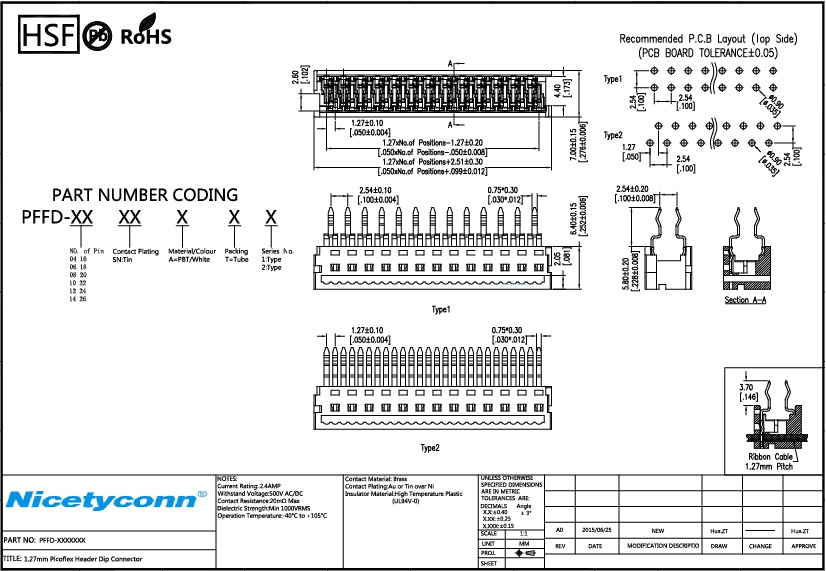

1.27 Pitch Picoflex Header DIP Plug |
|
Specification: |
|
Current Rating:2.4AMP |
|
Withstand Voltage:500V AC/DC |
|
Contact Resistance:20mΩ Max |
|
Dielectric Strength:Min 1000V RMS |
|
Operation Temperature:-40oC to +105oC |
|
Contact Material: Brass |
|
Contact plating: Au or Tin over Ni |
|
Insulator Material: High temperature plastic(UL94V-0) |
