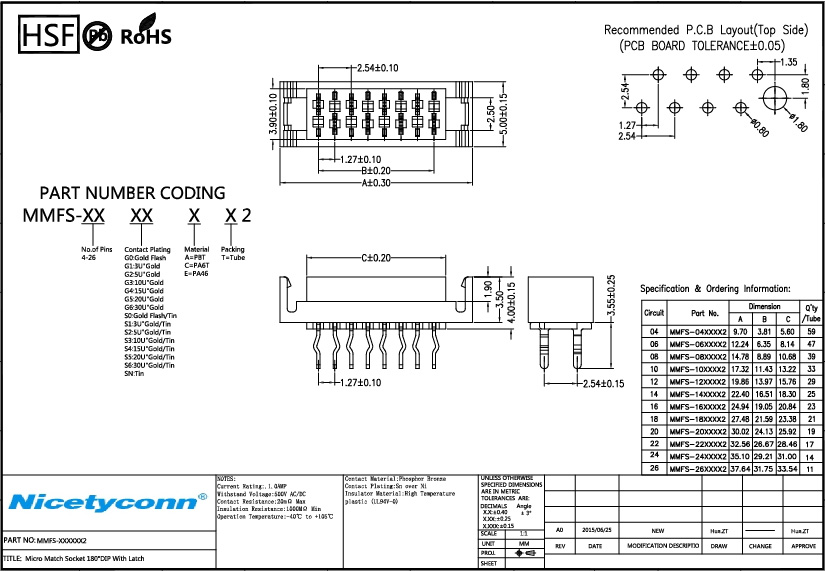

180 Degree DIP Micro Match Socket Plug with Latch |
|
Specification: |
|
Current Rating:1.0AMP |
|
Withstand Voltage:500V AC/DC |
|
Contact Resistance:20mΩ Max |
|
Insulation Resistance:1000MΩ Min |
|
Operation Temperature:-40oC to +105oC |
|
Contact Material: Phosphor Bronze |
|
Contact Plating: Sn over Ni |
|
Insulator Material: High temperature plastic(UL94V-0) |
