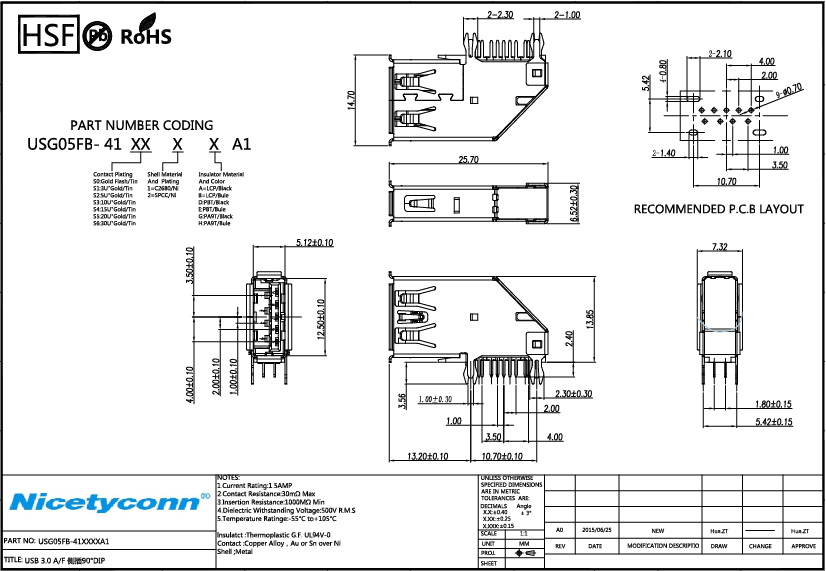

3.0 A/F 90 Degree DIP Side Entry USB Connector |
|
Specification: |
|
Current Rating: 1.5AMP |
|
Contact Resistance: 30mΩ Max |
|
Insertion Resistance: 1000MΩ Min |
|
Dielectric withstanding voltage: 500V R.M.S |
|
Temperature Range: -55oC to +105oC |
|
Insulator: Thermoplastic GF,UL94V-0 |
|
Contact: Copper Alloy, Au or Sn over Ni |
|
Shell; Metal |
